World Design Capital 2024 Exchange Pavilion

Press & Publications
Dezeen, Sept. 20, 2024
Archdaily, Nov. 5, 2024

The Exchange Pavilion, fabricated in Tijuana, installed in San Diego as a temporary structure, and later reassembled permanently in Tijuana, is a landmark of creativity, ingenuity, and cross-border collaboration. Conceived as the flagship of World Design Capital 2024, the Pavilion was designed as both a gathering space and a sculptural icon symbolizing the cultural and economic ties between San Diego and Tijuana.

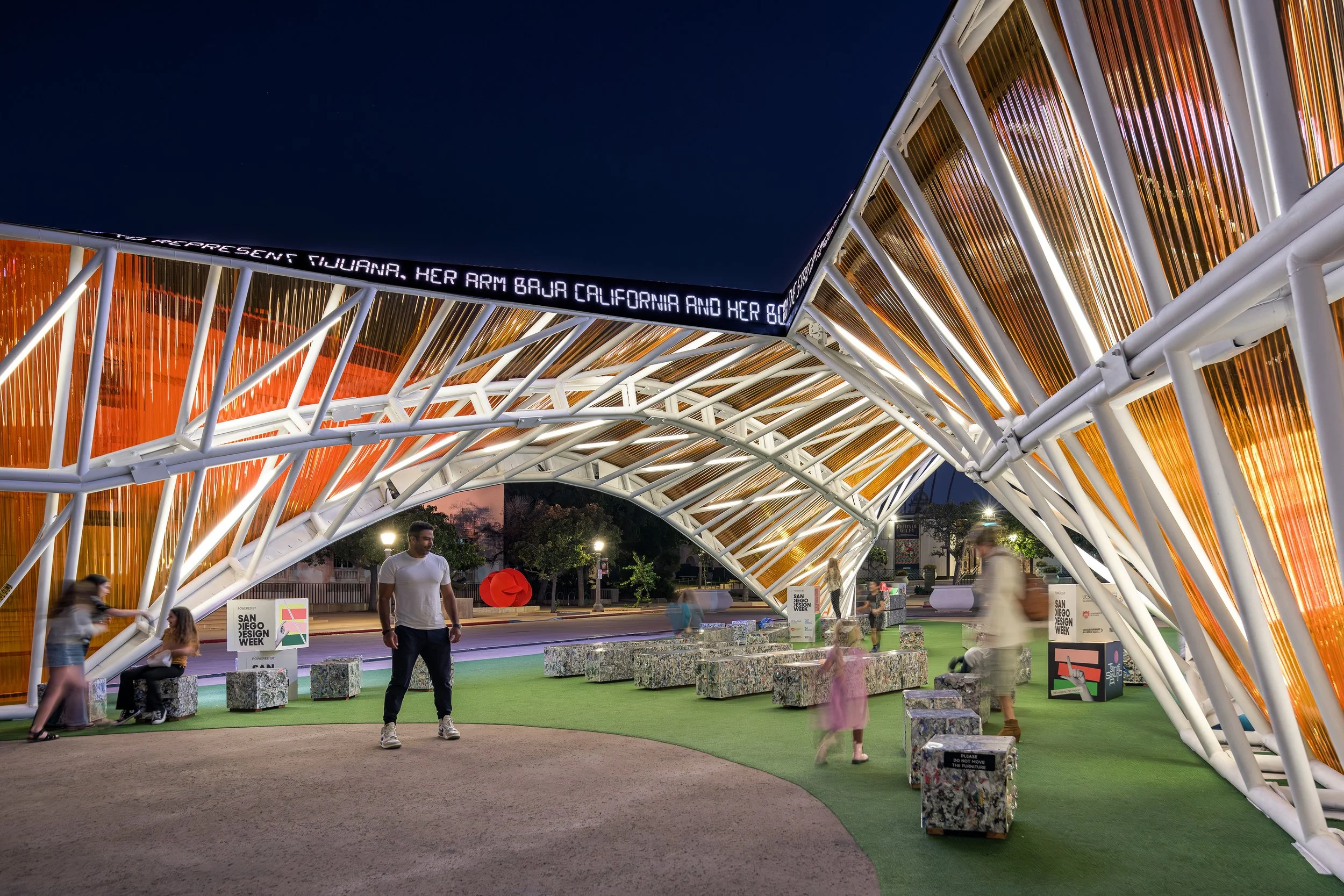

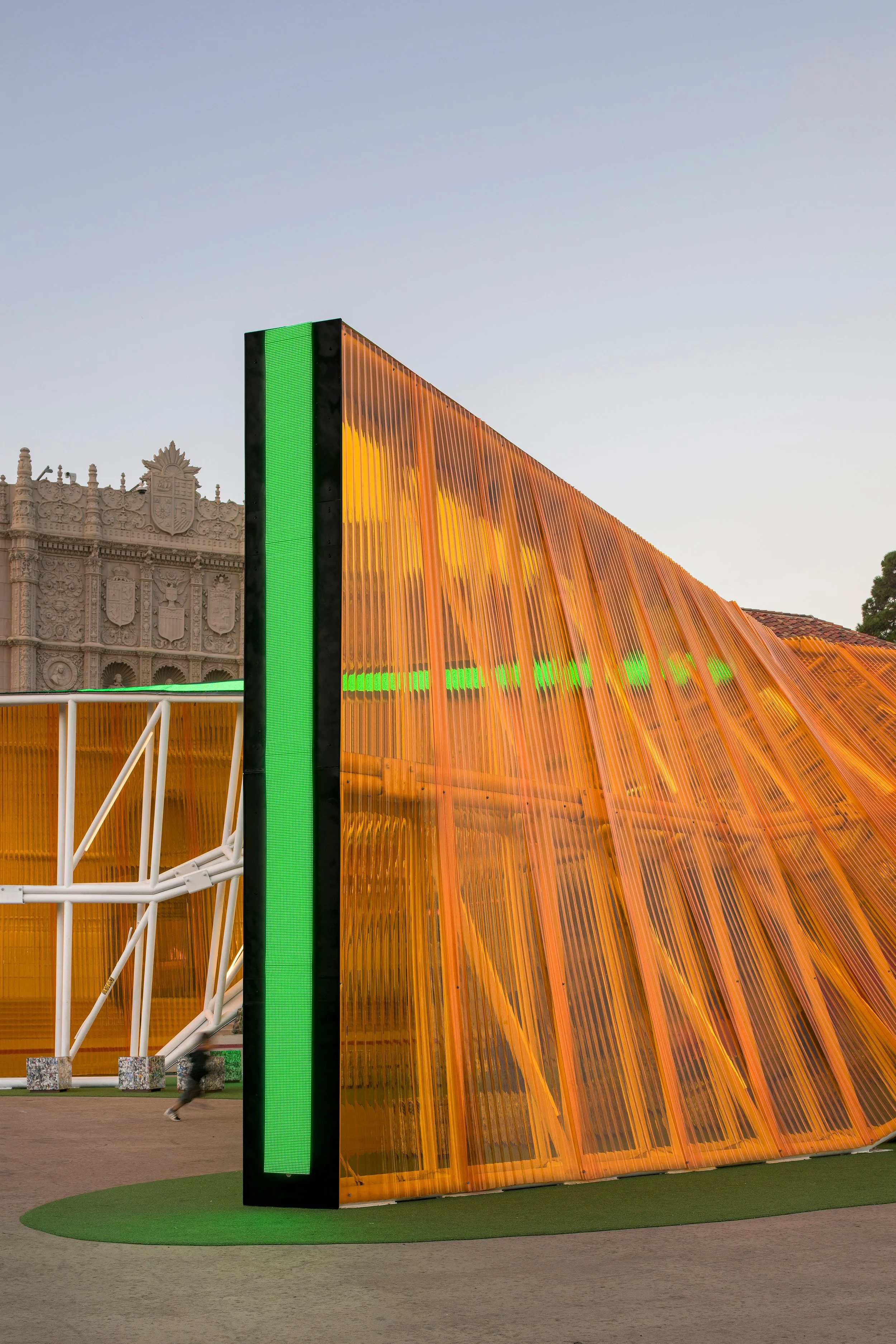

  • First erected in San Diego’s Balboa Park from August to November 2024, the Pavilion activated the Plaza de Panama, inviting visitors to enter from all sides and experience its cathedral-like atmosphere. By day, translucent orange cladding filtered sunlight into a warm glow; by night, rhythmic LED lighting transformed it into a civic beacon.

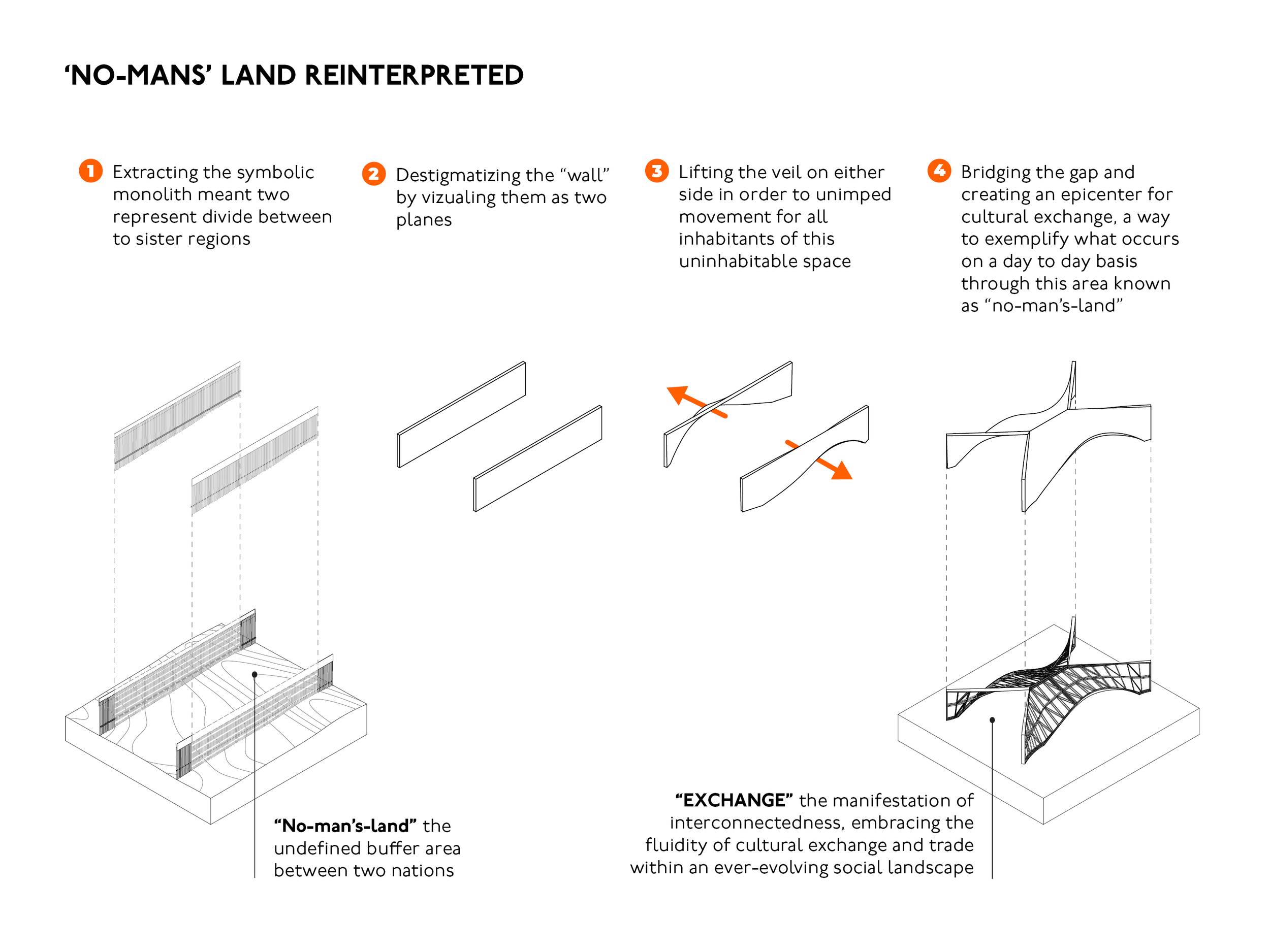

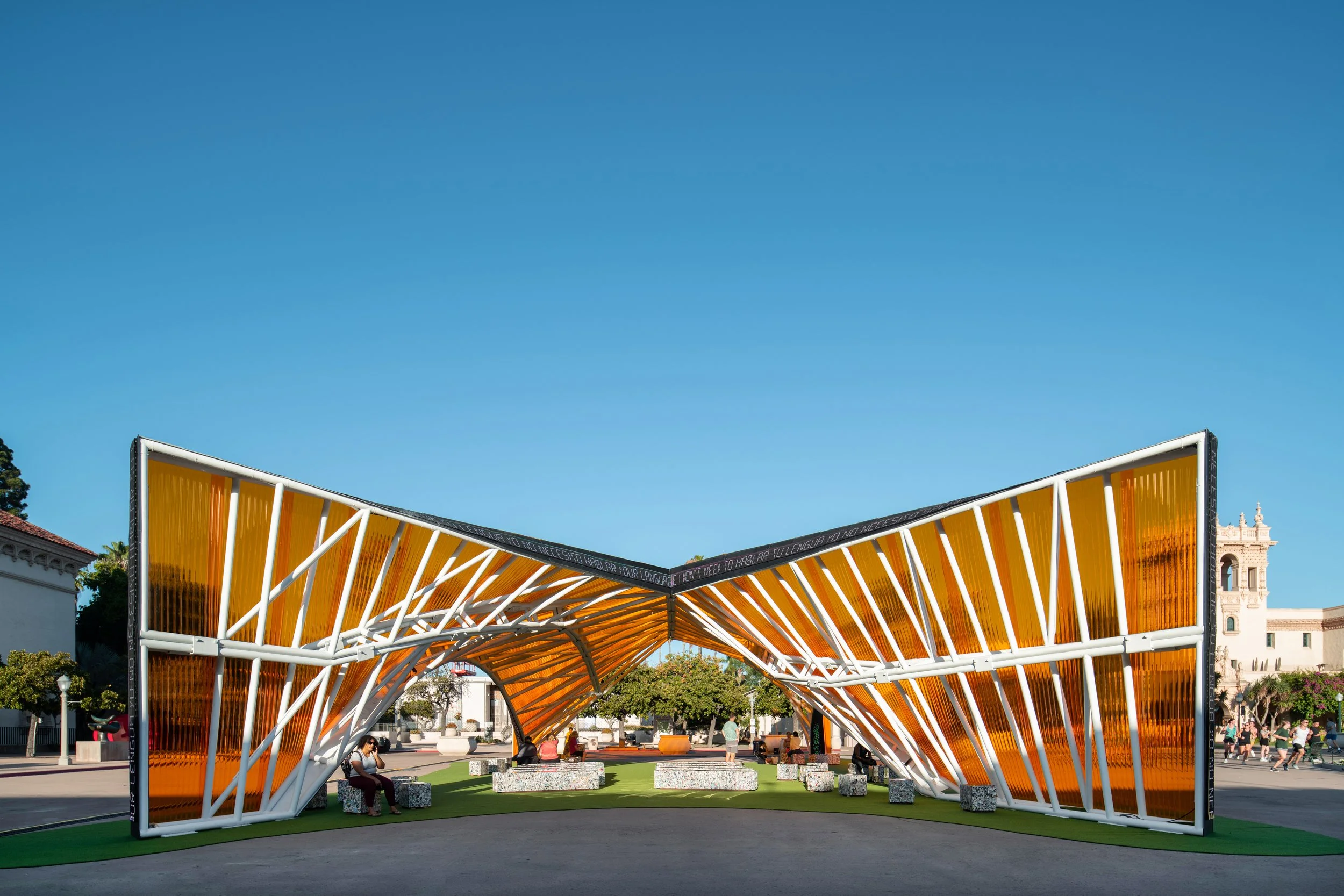

    Inspired by the idea of eliminating the “no man’s land” between the border walls, the Pavilion bends two walls together into a striking “X” form, creating a welcoming space for gathering, connecting, and exchanging ideas. During its San Diego debut, it hosted more than 70 community events, lectures, pop-up exhibits, and installations, along with countless informal gatherings, fostering cultural dialogue on a wide scale.

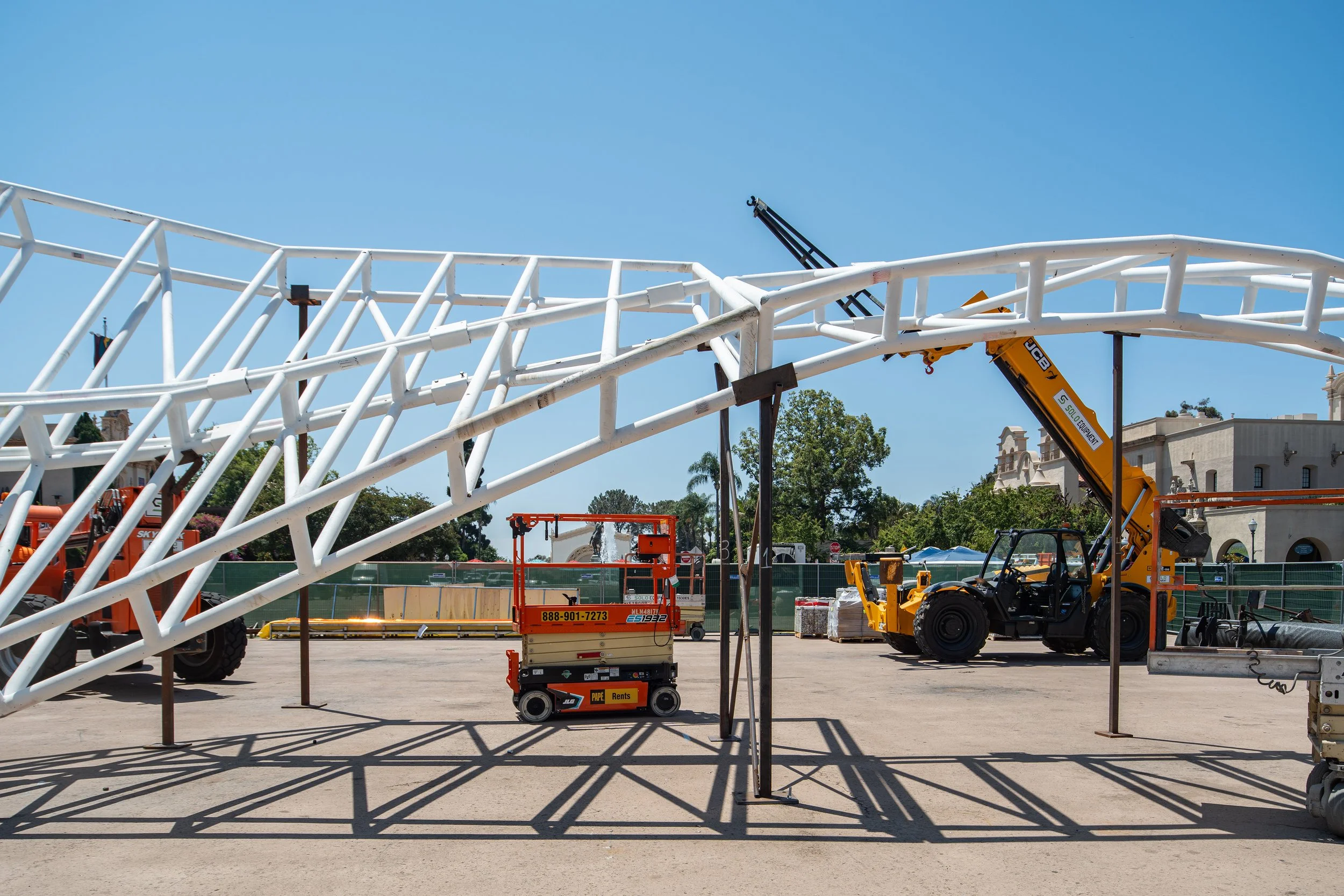

    Innovative in design and engineering, the Pavilion consists of eight prefabricated steel modules fabricated in Tijuana. Factory-welded and assembled on-site with bolted connections, it can be dismantled, moved, and reinstalled infinitely without loss of integrity. Spanning 85 feet without mid-span supports, it touches the ground only at its four corners, with each module supporting the others like a Roman vaulted ceiling.

    Sustainable features include seating made from landfill-bound plastic blocks and energy-efficient lighting. Though conceived as temporary, its resilient design enabled permanent installation in Parque Esperanto, Tijuana’s third-largest urban park, where it continues to embody civic pride and the collaborative spirit of the San Diego–Tijuana region.

  • Beyond structure, the pavilion integrates sustainability and material reuse:

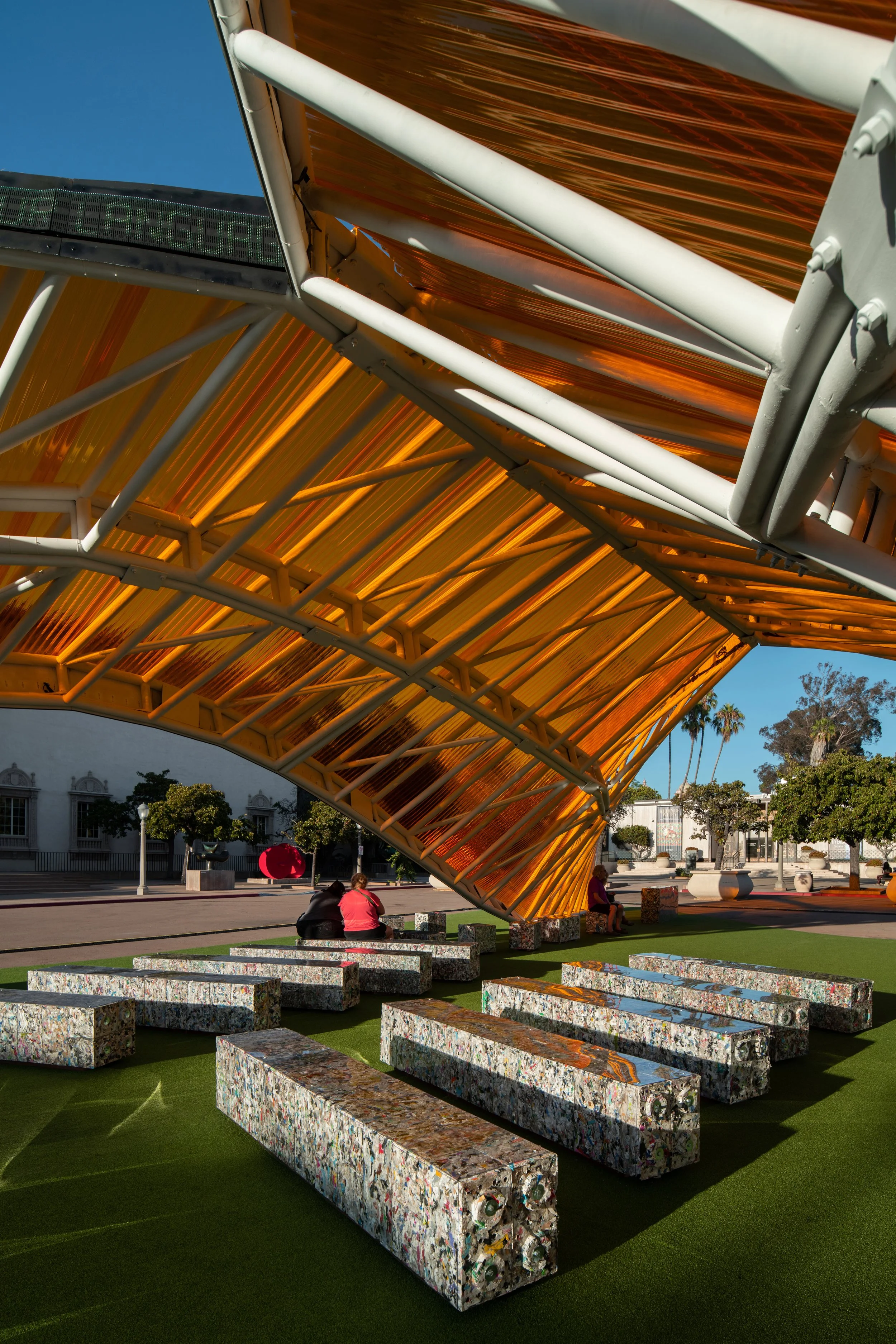

    • Modular seating was created using recycled plastic blocks from ByBlock

    • Lighting and digital controls were designed for energy efficiency and low-glare performance

    • HSS steel members utilized for the project were manufactured from 100% recycled steel material

  • Client
    World Design Capital 2024 San Diego Tijuana

    Location
    San Diego, CA / Tijuana, Baja California

    Status
    Complete

    Role
    Architect / Design Builder

    Scope
    Design, Fabrication, Installation

    Size
    3,500 SF

    Delivery method
    Design–Build

    Construction materials
    Steel, Polycarbonate panel,

    Construction cost
    $380,000

    Photography
    Ian Patzke
